Fuel Stations

Bunded Fuel Stations

We supply a range of TUFFA Bunded fuel station including diesel dispensers, fire protected diesel dispensers, biodiesel dispensers, multi-compartment dispensers and diesel bowsers. Ideal to bulk store and dispense red or white diesel. Our diesel storage tanks range from 1,350 litres capacity up to 15,000 litres (with interlinking they can go up to 100,000 litres)

Our fuel stations are all bunded to meet requirements and as standard are fitted with submersible pumping units and include a flowmeter with total/batch counter, 10 micron filter, delivery hose, and an automatic shut off nozzle, filtration and gauge. Smaller models come with a mechanical level gauge with larger capacity tanks supplied with a digital level gauge, bund alarm, overfill device, and a lockable security cabinet. The outer “bund” is a minimum of 110% capacity of the inner tank to help prevent overfilling and spillage. This ensures that you comply with all legal and Red Tractor requirements on Secondary Containment.

All tanks are UV stabilised and corrosion resistant with the option of Fire protection where required.

All our Tuffa Diesel Tanks and Fuel stations come complete and ready to use. All that is required is a solid, level concrete base and your final electrical connection.

We can also supply bunded steel fuel stations, please contact us for details.

Small Diesel Tanks

Small Diesel Tanks
Model: 1350SLBFS
Dimensions: 2680mm (L) x 870mm (W) x 1665mm (H)
Capacity: 1350 litres / 300 gallons approximately
Description: Small Plastic Bunded Diesel Tank


Small Diesel Tanks
Model: 2500HBFS
Dimensions: 2840mm (L) x 1520mm (W) x 1630mm (H)
Capacity: 2500 litres / 550 gallons approximately
Description: Small Plastic Bunded Diesel Tank

Specification

  • A submersible pump (240v mains required)
  • 4 metres of delivery hose and an automatic nozzle
  • Nozzle Parker
  • Digital flowmeter
  • 10 micron filtration
  • Clock gauge
  • 2” fill point complete with cap and chain vent
  • Easy access flip lid. This will contain the 2” fill and any appropriate equipment
Colour: Black

** An Economy version is also available with a lower specification including submersible pump, 4m delivery hose and nozzle only. Please ask for details. **

Optional Extras

Extra delivery hose (per meter)
Watchman Sonic Remote Readings Gauge (240v mains required)
10micron Filter – Particulate Only
10micron Filter - Water & Particulate
Spin Secure Locking Fill Cap with Keys
Fire Protection
Armco Protection Barrier
Fuel Management – various systems available

Large Diesel Tanks

Large Diesel Tanks
Model: 3500VBFS
Dimensions: 2034mm (DIA) x 2520mm (H)
Capacity: 3500 litres approximately
Description: Plastic Bunded Diesel Tank

Large Diesel Tanks
Model: 6000VBFS
Dimensions: 2580mm (DIA) x 2610mm (H)
Capacity: 6000 litres approximately
Description: Plastic Bunded Diesel Tank

Large Diesel Tanks
Model: 10000VBFS
Dimensions: 2890mm (DIA) x 2600mm (H)
Capacity: 10000 litres approximately
Description: Plastic Bunded Diesel Tank

Large Diesel Tanks
Model: 15000VBFS
Dimensions: 2860mm (DIA) x 3500mm (H)
Capacity: 15000 litres approximately
Description: Plastic Bunded Diesel Tank

Specification

  • A submersible pump (240v mains required)
  • 4 metres of delivery hose and an automatic nozzle
  • Nozzle Holster
  • Digital flowmeter
  • 10 micron filtration
  • 2” fill point complete with cap and chain vent
  • Low level fill point cabinet which will house any appropriate equipment
  • Tuffa FMS; combined high accuracy gauge and bund and overfill alarm unit (240v mains required)
  • Overfill prevention valve
Colour: Black


Optional Extras

High Flow Pump (80lpm approximately)
Extra delivery hose (per metre)
10micron Filter – Particulate Only
10micron Filter - Water & Particulate
High Security Steel Cabinet with Roller Shutter Door
Spin Secure Locking Fill Cap with Keys
Fire Protection
Armco Protection Barrier
Light inside Cabinet (240v)
Fuel Management – various systems available
Hose Reel – 8M

Benefits of Tuffa Fuel Stations

  • Suitable for agricultural applications
  • Horizontal and vertical models available
  • Refuelling equipment easily accessible from ground level
  • The bund contains a minimum 110% volume of the inner tank
  • The bunded construction offers integral protection from leakage and overfilling
  • Covered bund prevents the collection of rainwater and debris
  • Made from recyclable polyethylene
  • Corrosion resistant
  • UV stabilised

Multi-Compartment Tanks

Our Multi-Compartment tanks give you the facility to store 2 or more types of diesel in the same tank. This saves buying 2 tanks to store, for example, white and red diesel, reducing the tank's footprint and saving space on your premises.

Various capacities are available for each Multi-Compartment tank, starting from 1400/1400 litres up to 5600/2300 litres, with the option of separate dispensing and monitoring for each compartment.

Tanks can be interlinked to increase capacity or we can produce 3 or more compartments if required - please contact us for more options.

Our multi compartment tanks are all bunded to meet requirements and as standard are fitted with submersible pumping units and include a flowmeter with total/batch counter, 10 micron filter, delivery hose, and an automatic shut off nozzle, filtration, digital level gauge, bund alarm, overfill device, and a lockable security cabinet. All of these tanks come complete and ready to use. All that is required is a hard, flat concrete base and your final electrical connection.
Multi-Compartment Tanks
Model: 1400/1400 DUAL
Dimensions: 2890mm (DIA) x 2600mm (H) – exc. cabinet
Capacity: 2 compartments of: 1400 litres / 1400 litres approximately
Description: Bunded Dual Compartment Tank

Multi-Compartment Tanks
Model: 1400/3700 DUAL
Dimensions: 2890mm (DIA) x 2600mm (H) – exc. cabinet
Capacity: 2 compartments of: 1400 litres / 3700 litres approximately
Description: Bunded Dual Compartment Tank

Multi-Compartment Tanks
Model: 2300/3700 DUAL
Dimensions: 2890mm (DIA) x 2600mm (H) – exc. cabinet
Capacity: 2 compartments of: 2300 litres / 3700 litres approximately
Description: Bunded Dual Compartment Tank

Multi-Compartment Tanks
Model: 3200/3200 DUAL
Dimensions: 2860mm (DIA) x 3500mm (H) – exc. cabinet
Capacity: 2 compartments of: 3200 litres / 3200 litres approximately
Description: Bunded Dual Compartment Tank

Multi-Compartment Tanks
Model: 5600/1400 DUAL
Dimensions: 2890mm (DIA) x 2600mm (H) – exc. cabinet
Capacity: 2 compartments of: 5600 litres / 1400 litres approximately
Description: Bunded Dual Compartment Tank


Alternative capacity combinations available. Please ask for details.

Specification

  • 2 x submersible pumps (240v mains required)
  • 2 x 4 metres of delivery hose
  • 2 x Nozzle Holsters
  • 2 x Automatic shut off nozzles
  • 2 x digital flow meters
  • 2 x Cartridge filter
  • 2 x Tuffa FMS; combined high accuracy gauge and bund and overfill alarm unit (240v mains required)
  • 2x Key Switch – to operate the pump
  • 2 x 2” fill point
  • A cabinet which will house all appropriate equipment
  • 2 x Overfill prevention valves

Benefits of Tuffa Multi-Compartment Tanks

  • Suitable for agricultural, commercial and industrial applications
  • Refuelling equipment for both compartments easily accessible from ground level
  • The bund contains a minimum 110% volume of the inner tank
  • The bunded construction offers integral protection from leakage and overfilling
  • Covered bund prevents the collection of rainwater and debris
  • Lockable outer cabinet allowing access to all equipment
  • Overfill prevention device fitted to all large bunded tanks; automatic shut off when the tank is full
  • Made from recyclable polyethylene
  • Corrosion resistant
  • UV stabilised

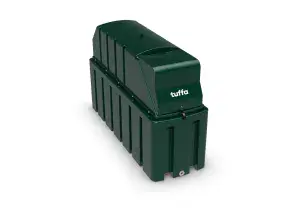

Bunded Oil tanks

We supply a range of TUFFA bunded oil tanks ranging from 1350 to 15,000L (with interlinking they up to 100,000 litres)

The outer “bund” is a minimum of 110% capacity of the inner tank to help prevent overfilling and spillage. This ensures that you comply with all legal and Red Tractor requirements on Secondary Containment.

All tanks are UV stabilised and corrosion resistant with the option of Fire protection where required.

Various options are available for outlets, fittings and contents gauges to suit every requirement.

All our Bunded Oil Tanks come complete and ready to use. All that is required is a solid, level concrete base and your final electrical connection. We can also supply bunded steel oil tanks.
Bunded Oil Tanks
Model: 1350SLB
Dimensions: 2680mm (L) x 870mm (W) x 1665mm (H)
Capacity: 1350 litres / 300 gallons approximately
Description: Small Plastic Bunded Oil Tank

Bunded Oil Tanks
Model: 1400VB
Dimensions: 1585mm (DIA) x 1740mm (H)
Capacity: 1400 litres / 300 gallons approximately
Description: SmallPlastic Bunded Oil Tank

Bunded Oil Tanks
Model: 2500HB
Dimensions: 2840mm (L) x 1520mm (W) x 1630mm (H)
Capacity: 2500 litres / 550 gallons approximately
Description: Small Plastic Bunded Oil Tank

Bunded Oil Tanks
Model: 3500VB
Dimensions: 2034mm (DIA) x 2520mm (H)
Capacity: 3500 litres approximately
Description: Plastic Bunded Oil Tank

Bunded Oil Tanks
Model: 6000VB
Dimensions: 2580mm (DIA) x 2610mm (H)
Capacity: 6000 litres approximately
Description: Plastic Bunded Oil Tank

Bunded Oil Tanks
Model: 10000VB
Dimensions: 2890mm (DIA) x 2600mm (H)
Capacity: 10000 litres approximately
Description: Plastic Bunded Oil Tank

Bunded Oil Tanks
Model: 15000VB
Dimensions: 2860mm (DIA) x 3500mm (H)
Capacity: 15000 litres approximately
Description: Plastic Bunded Oil Tank


Adblue, Waste oil, Petrol and Water Storage Tanks

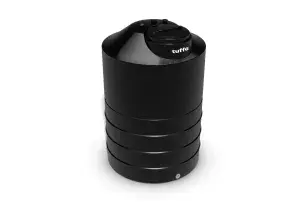

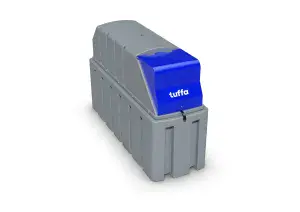

We can supply a variety of bunded Adblue tanks, waste oil storage tanks and water tanks.

Petrol Storage tanks meeting all UK & EU legislation also available.


Adblue, Waste oil, Petrol and water storage tanks
